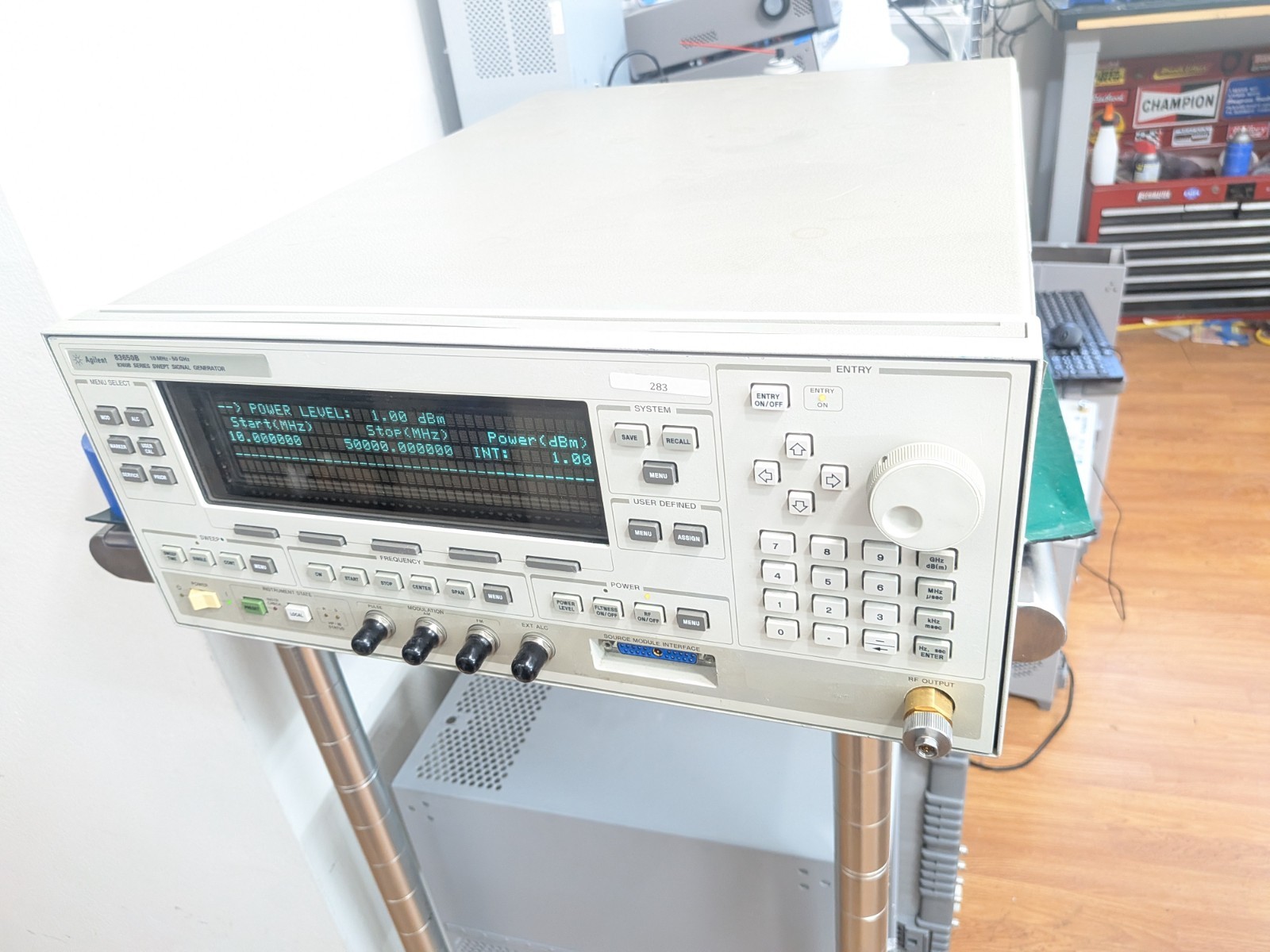

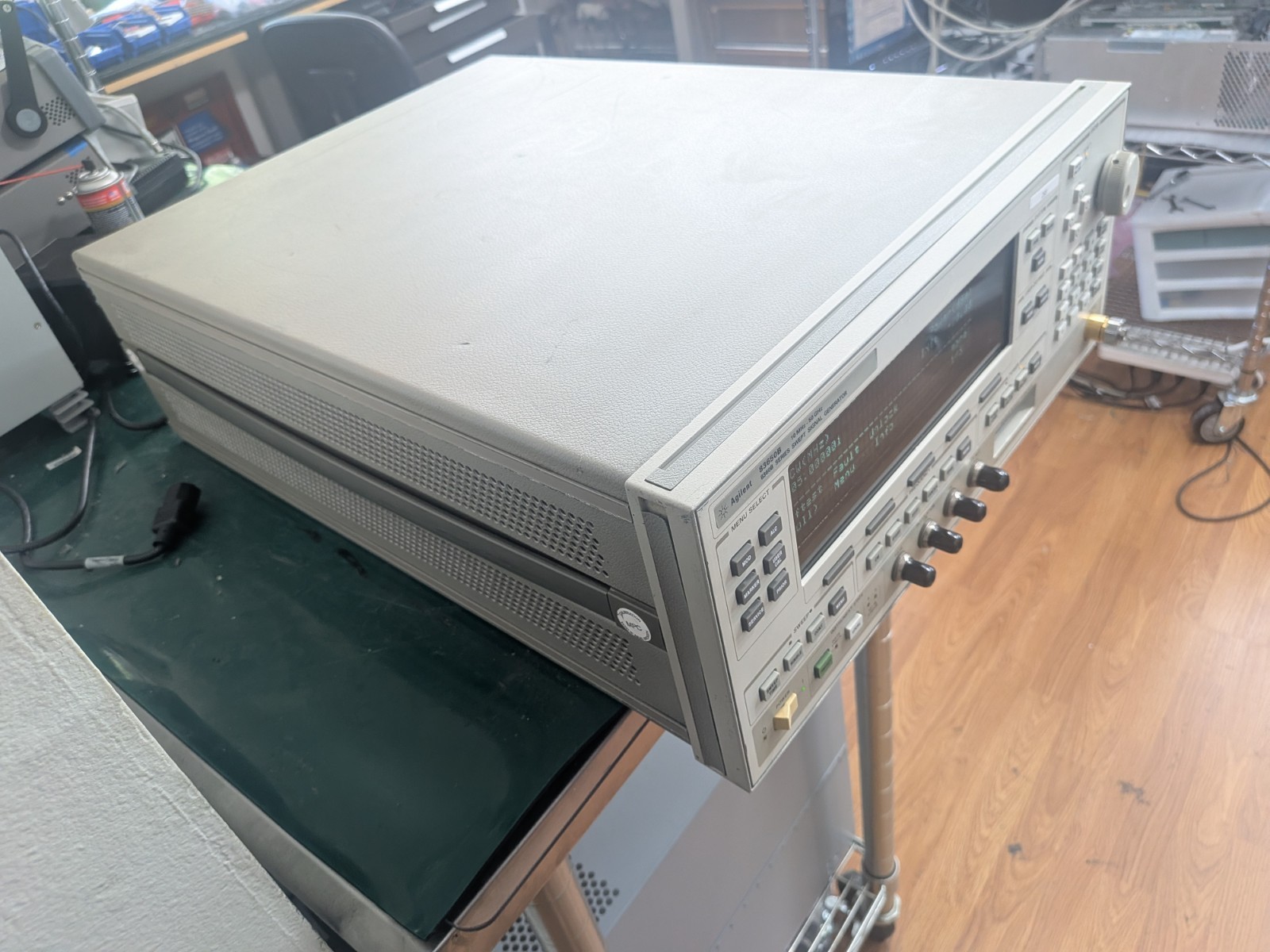

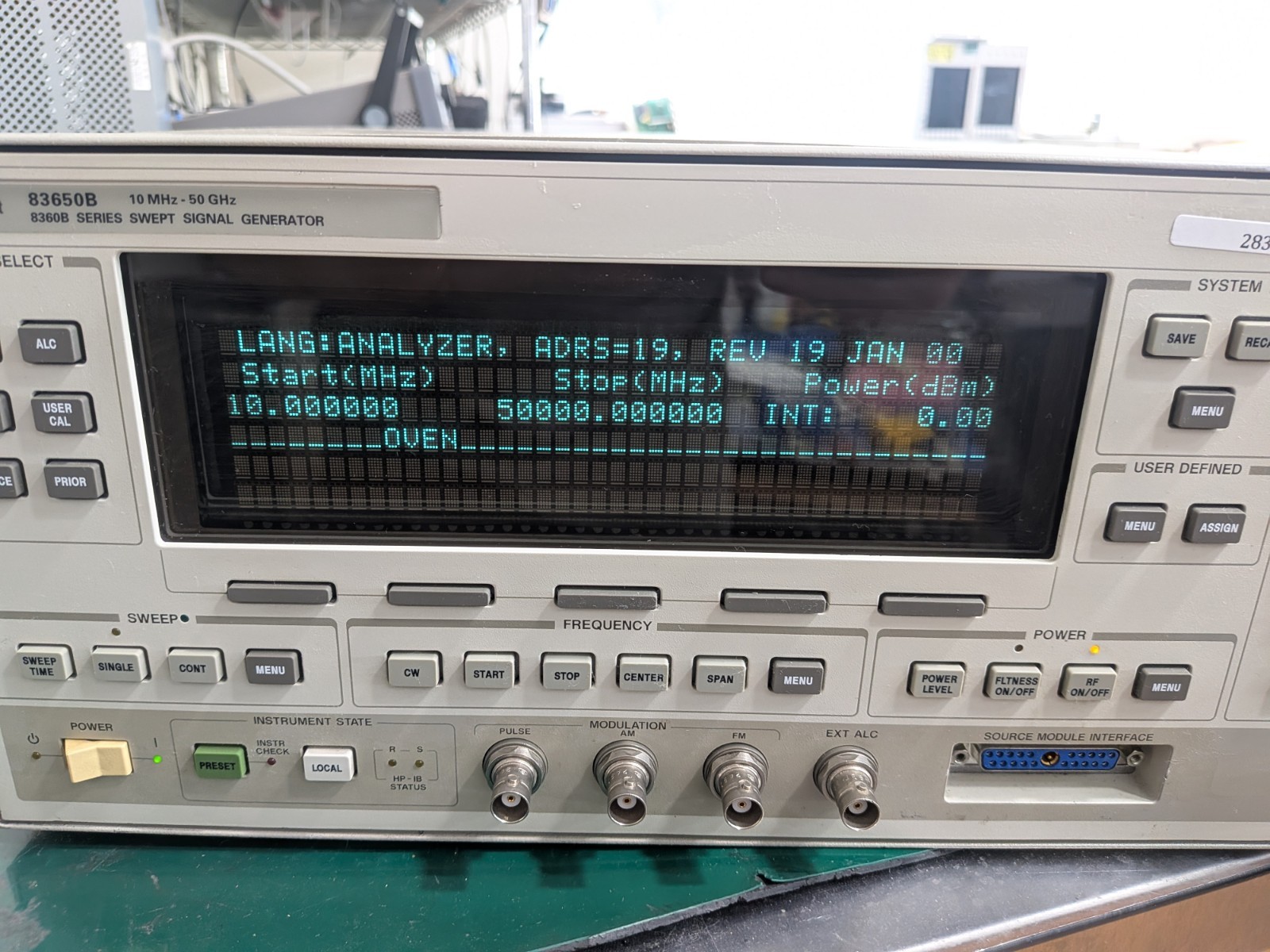

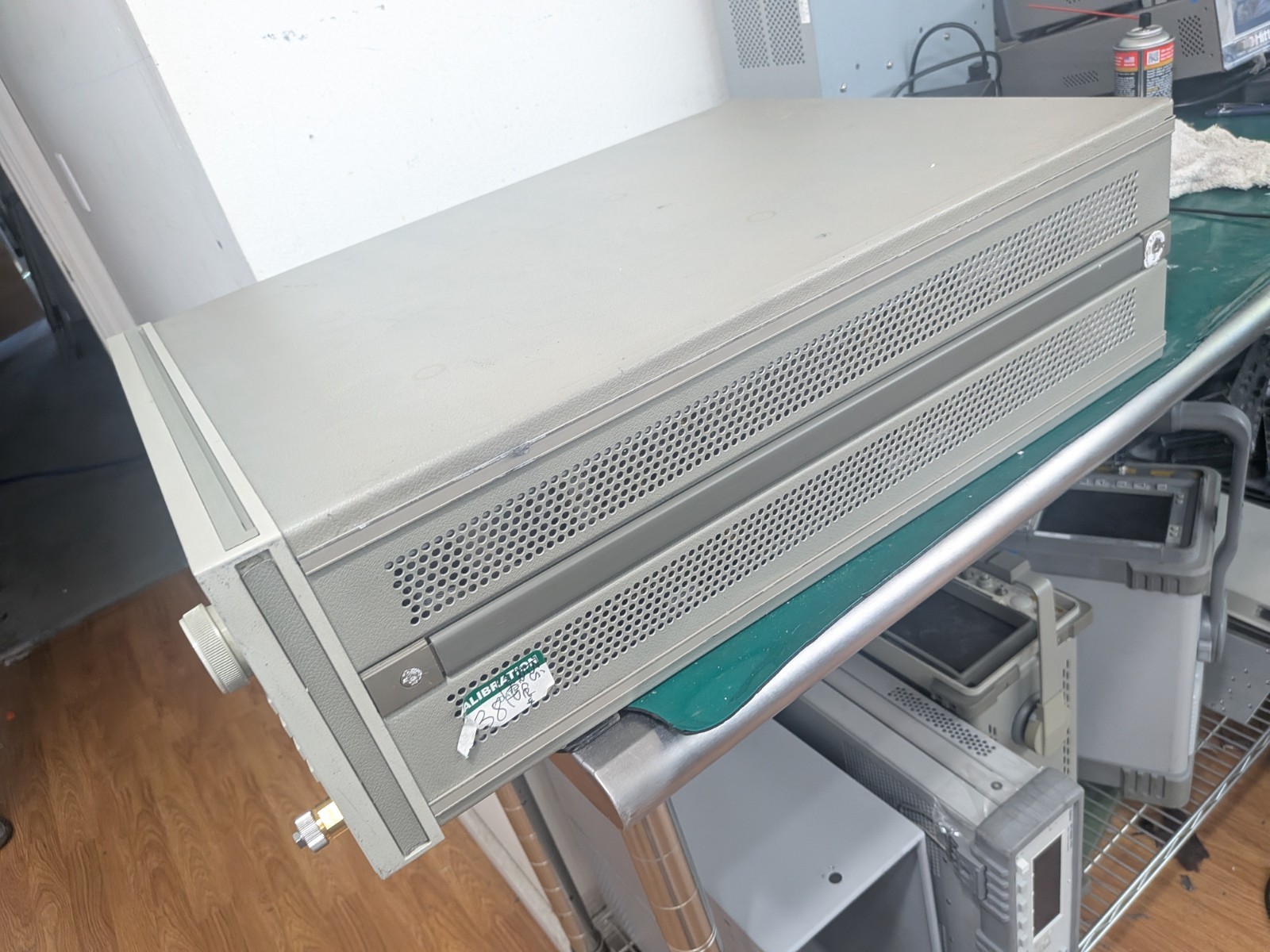

Agilent HP 83650B Cal’d 10Mhz-50Ghz Signal Generator Sweeper Opt 1,8 -110-+10db

Description

Doubler has just been serviced (most expensive part). Because of this it meets max power spec .

Plus we ran a ton of extensive alignments and swapped out the weak components , then added an attenautor as shown in pics.

This required many post alignments as shown as well.

So unlike most you buy on eBay that are failing  spec ,  this one gets a full 0 dbm +++ with attenuator at 50 ghz and way more power than that below 50 ghz………

We have them without attenuator too if you prefer an extra 4 db of power (that’s how much the power drops up high with attenautor opt 001 added).

Includes opt 001:  -110dbm attenuator and 008 : 1 hz resolution !

Includes brand new full alignments and calibration!!!! Nist traceable 2 yr interval !!!

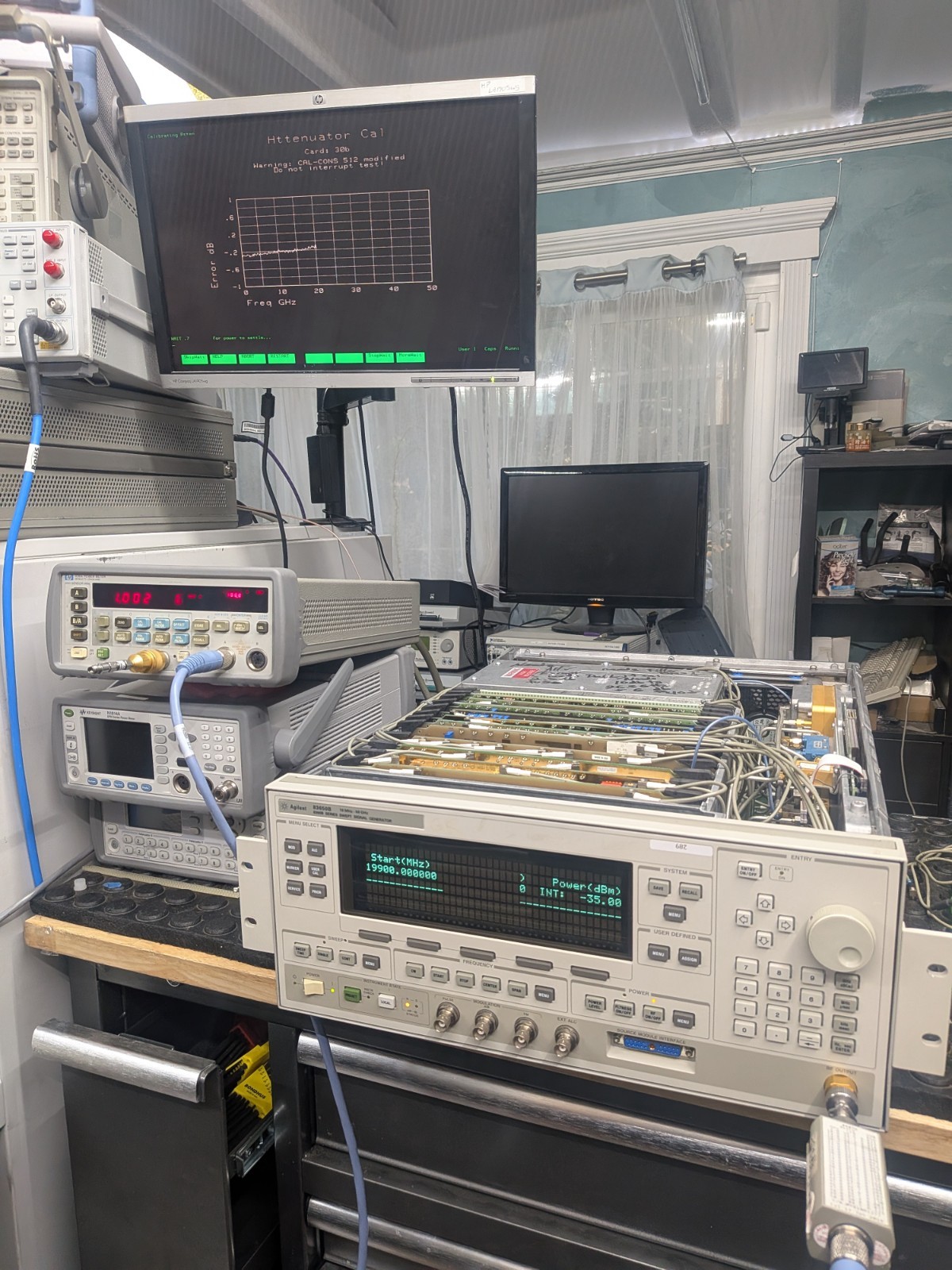

Alignments including full attenuator steps and flatness with alc adjustments (see pics of our setup)…..10 Mhz  Freq reference tuning to rubidium, plus maximizing top end power and eliminating oscillations which are incredibly prevalent on these if not checked. We sweep em on our 8757D to accomplish these tasks where you can squash the squeggs and bring up as much power as possible without oscillation.

We can tune yours as well. Contact us!

We have cheaper 50 ghz models like the 51b but they only yield half the power! You get what you pay for 😉

Tho If you’re on a tight budget that’s the way to go however.

For massive tax breaks and other huge discounts hit us up online 😉 😉 😉

We are

Test cal instruments in diamond bar california!

It’s easy . If you find us you win a nice prize/price 😉

.

!

If you don’t need attenuator option reduce price by 1000$ and get the full power out of it.(An extra 4 dbm)

The doubler is really the only major part that keeps this from a cheapo 83630b. And it’s been completely rebuilt ! So should last another 25 years!  I wouldn’t chance it with a different generator if this is what you need(50 ghz for under 40k).

Currently has front  output but can move it to rear  (option 004)output upon request for no extra cost!

.

min power spec is -110 db from the whole range 10 Mhz to 50 ghz.

With fitted attenuator .

10 Mhz to 50 Ghz full range super fast sweeper (analog ramp and step sweeps) and cw generator with decent phase noise performance(better close in and wide  than mid level) , perfect working calibrated unit we use in our lab right now. unfortunately I need to sell it for cash flow right now. my loss is your gain. its a beautiful unit. .

Signal is super clean, no squegging when used as a source for a network analyzer.

Guaranteed to pass all specs.

Comes with calibration certificate and a sticker.

will accept any good offer !

30 day warranty

pics  Up !!!

contact me for any info. we are a calibration lab called test cal instruments in diamond bar ca.

pickup is fine and you can spend as long as you like testing it before buying it.

This one has external am and fm modulation and internal  and ext pulse modulator  !

If for any reason the output connector breaks or strips, we can fix those no problem with our own test cal branded solution! Contact us for that service . Since all agilent 40/50 ghz gear uses the same part type, we do em all!

you can use this for 8757x series network analyzers  or 8510c network analyzers.if you want a complete system we can offer that too.

its a workhorse.

we use it currently with no issues.

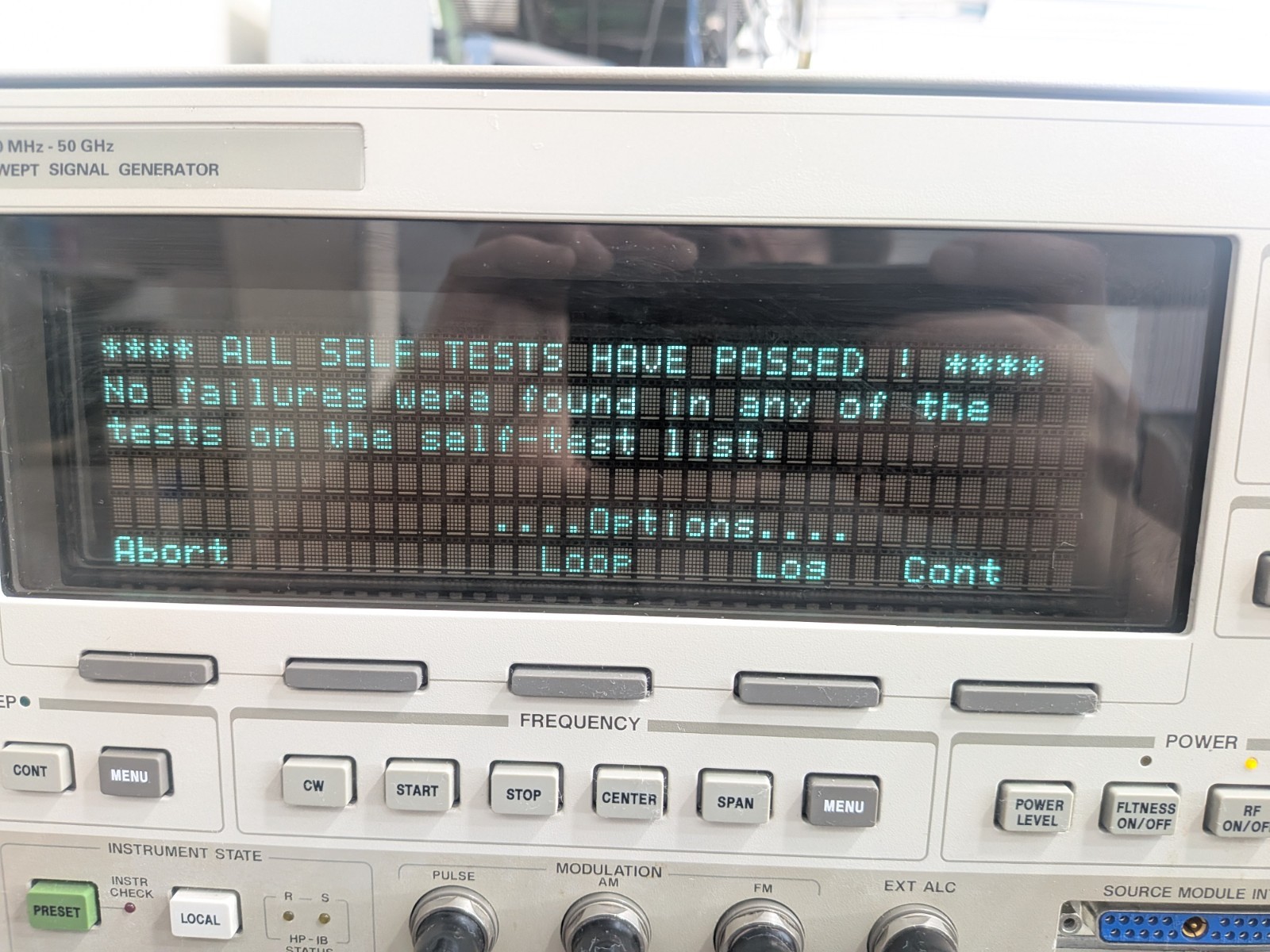

Passes all self tests every time!

Display  and buttons are superb!
