Agilent 86100A Option 1 Oscilloscope 83484B 86109A 30ghz Optical 40/66Ghz Electr

Description

Agilent 86100A Wide Bandwidth Oscilloscope/ With a 83485a Module and a twice as expensive newer easier to use 86109a module. Condition is refurbished and fully tested with 30 day warranty!

Brand new whiter display installed since pics posted!

Looks new now!

Also upgraded the hdd with a flash drive ssd and we keep the original as a backup inside the mainframe so if you have problems 10 yrs down the road simply swap it to the original .

I have two of these opt 1 equipped mainframes. If you need more

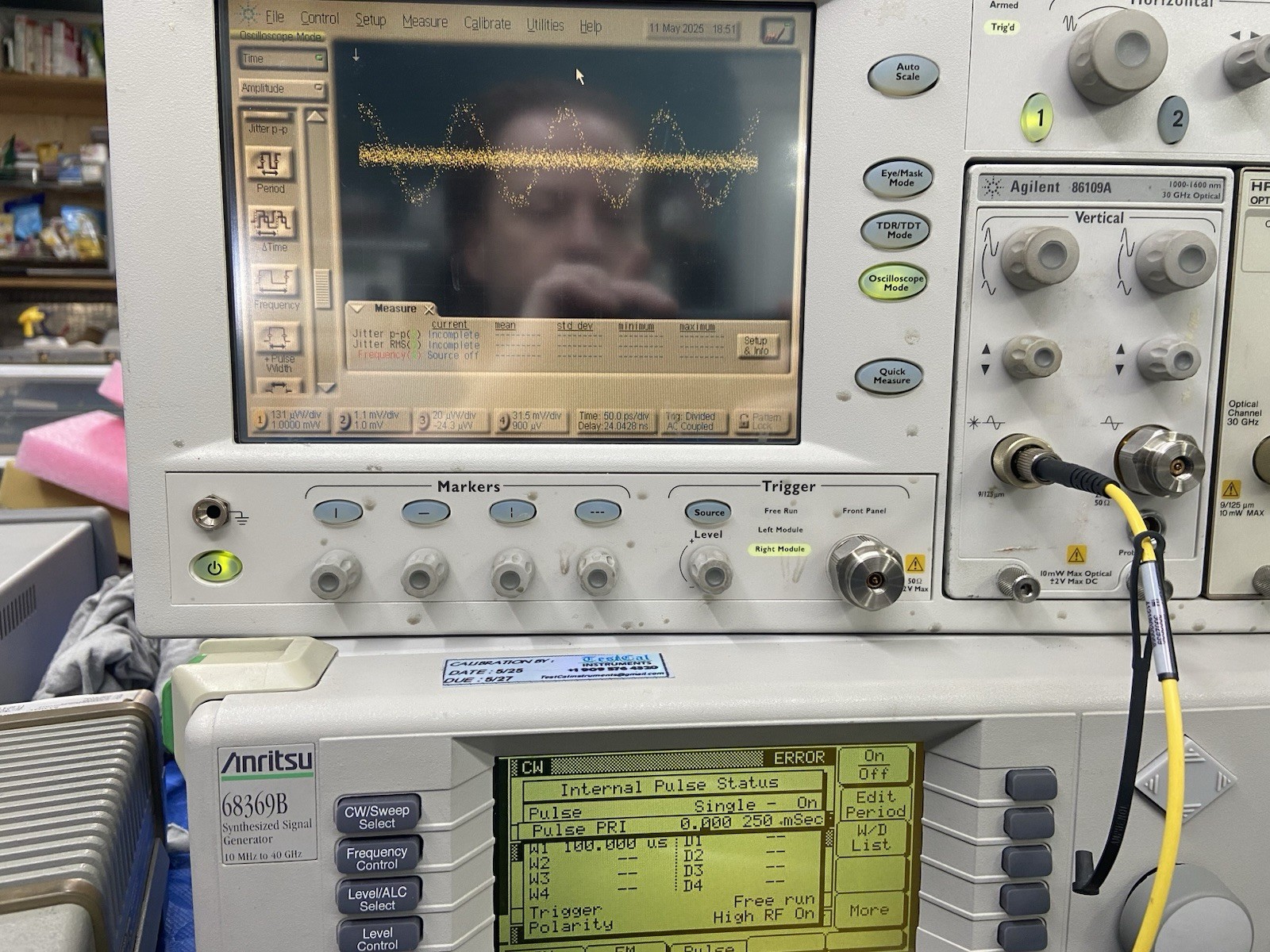

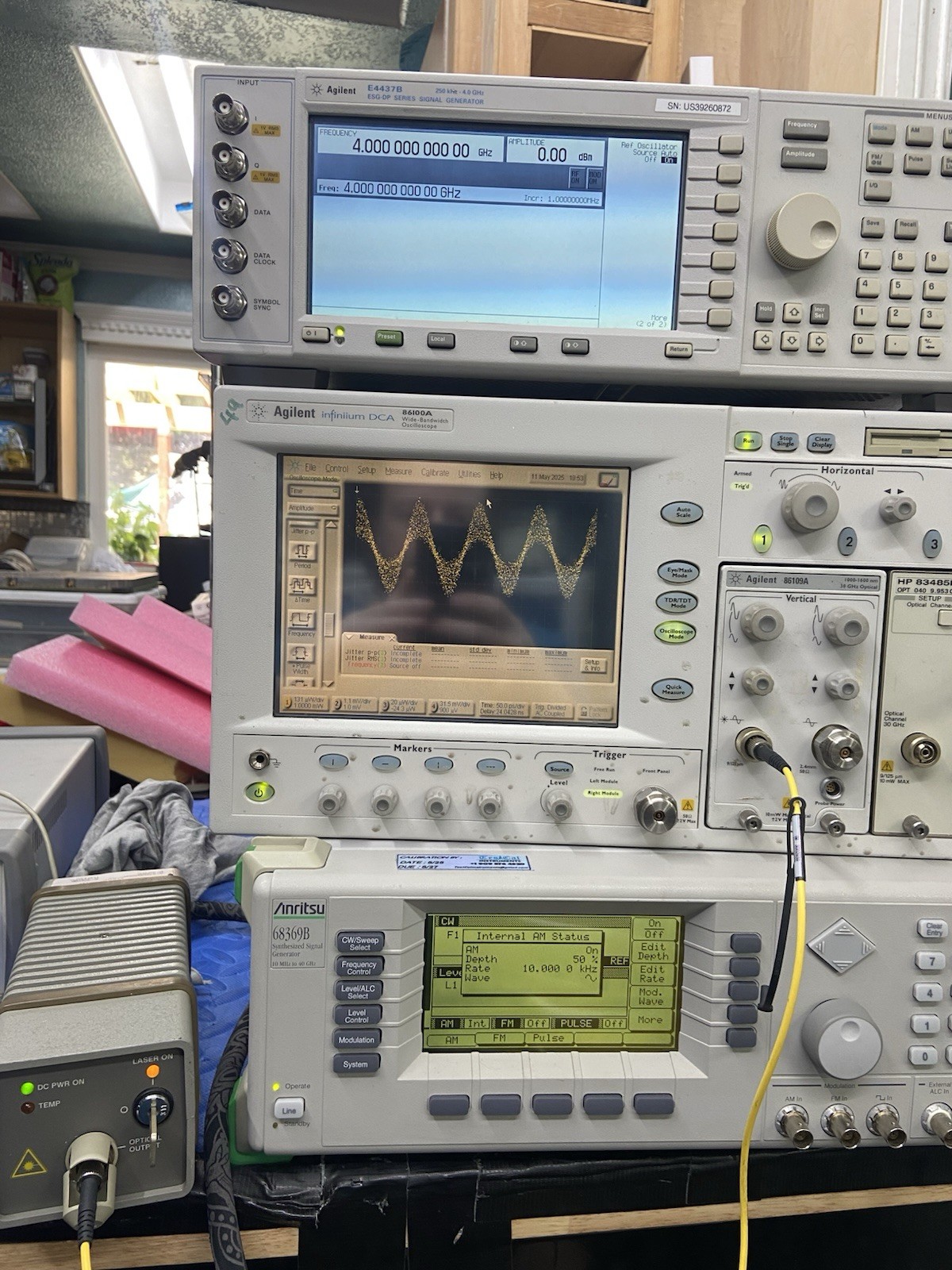

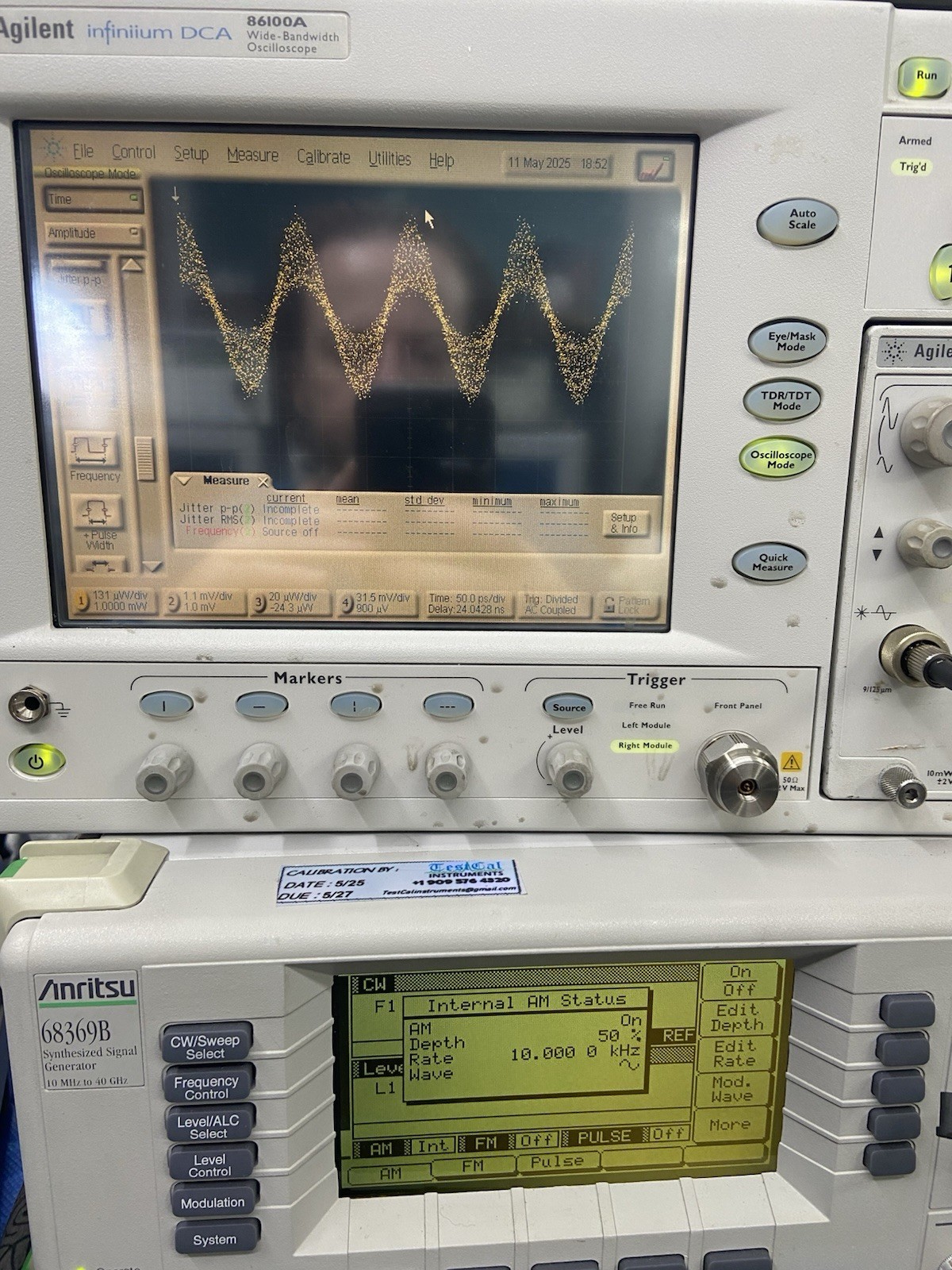

Pics showing am and pulse modulation

Shipped with Economy Shipping.

Rated to 40 ghz but tested good all the way up to 66 ghz when using super low phase noise trigger source as shown .

This mainframe has opt 001 which extends the trigger sampling to 20 ghz ! And it makes not only the front panel trigger 20 ghz compatible but also every trigger on the modules! Its a must have!

If you dont need opt 1 reduce price by 500$. You can still get up high with good results with the standard trigger, you just have less options and the waveform will be slightly widened and less stable as with a higher frequency trigger.

Also we have the 20 ghz optical/electrical equivalent modules if you are on a budget .

For cheaper of course and also pure dual channel electrical modules in 20 ghz format as well

Both modules test perfect on both optical and electrical channels! Optical tested up to 12 ghz but guaranteed good to 30ghz. Electrical tested to 66 GHz.

You can put whichever agilent type optical connector you like on. They just screw right on! Also we will have the frequency calibrated upon purchase. Theres an adjustment on the bottom.

If you like we can upgrade the hdd to a brand new solid state drive for faster boot time and preventitive maintenance for no extra charge!
